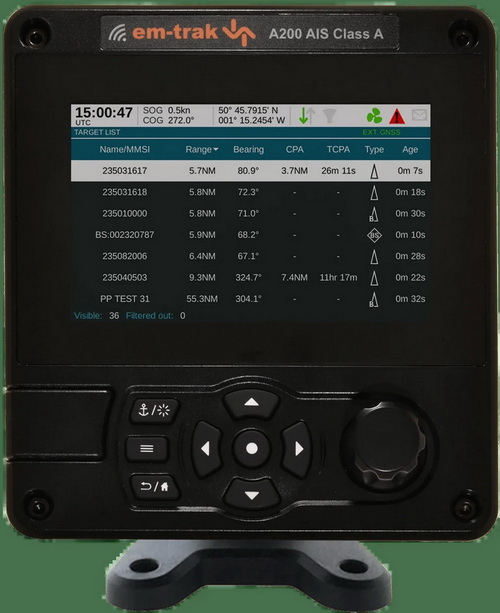

The A200 is a fully integrated AIS Class A transceiver which is both SOLAS and Inland Waterway certified for global compliance with all national and international (IMO) commercial vessel AIS regulations.
A single integrated and small unit which is water and weather proof (IPx6 & IPx7), with integrated colour display. The A200 is easy to install, use, and integrate with all bridge systems as well as offering a full range of sophisticated AIS functionality such as alerts, target filters, vessel information lists, real time weather and more.
Guaranteed connectivity to any chart-plotter and PC/Phone/Tablet/Watch and navigation app. This ensures you are not limited to any display device or navigation application now or in the future and can maximise AIS related functionality such as weather, MOB, anti-collision, anchor safety, vessel tracking and more.
Systems supported – GPS, GLONASS, BeiDou, Galileo
(two of any combination, three including GPS, Galileo)
Channels – 72
Internal/external antenna – External only
Time to first fix from cold start – 26s
Supply voltage – 12V or 24V DC
Supply voltage range – 9.6V – 31.2V DC
Average current (at 12V) – 520mA
Peak current – 6A
Average power consumption (at 12V) – 6.2W
Galvanic isolation – NMEA 0183, NMEA 2000, Power supply, VHF antenna port
NMEA 0183 – 3 x input ports. 3 x bi-directional ports
NMEA 2000 – NMEA 2000 Ed 3.101, LEN=1
Wi-Fi – IEEE 802.11 (a/b/g), client and access point mode supported (5 connections in access point mode)
